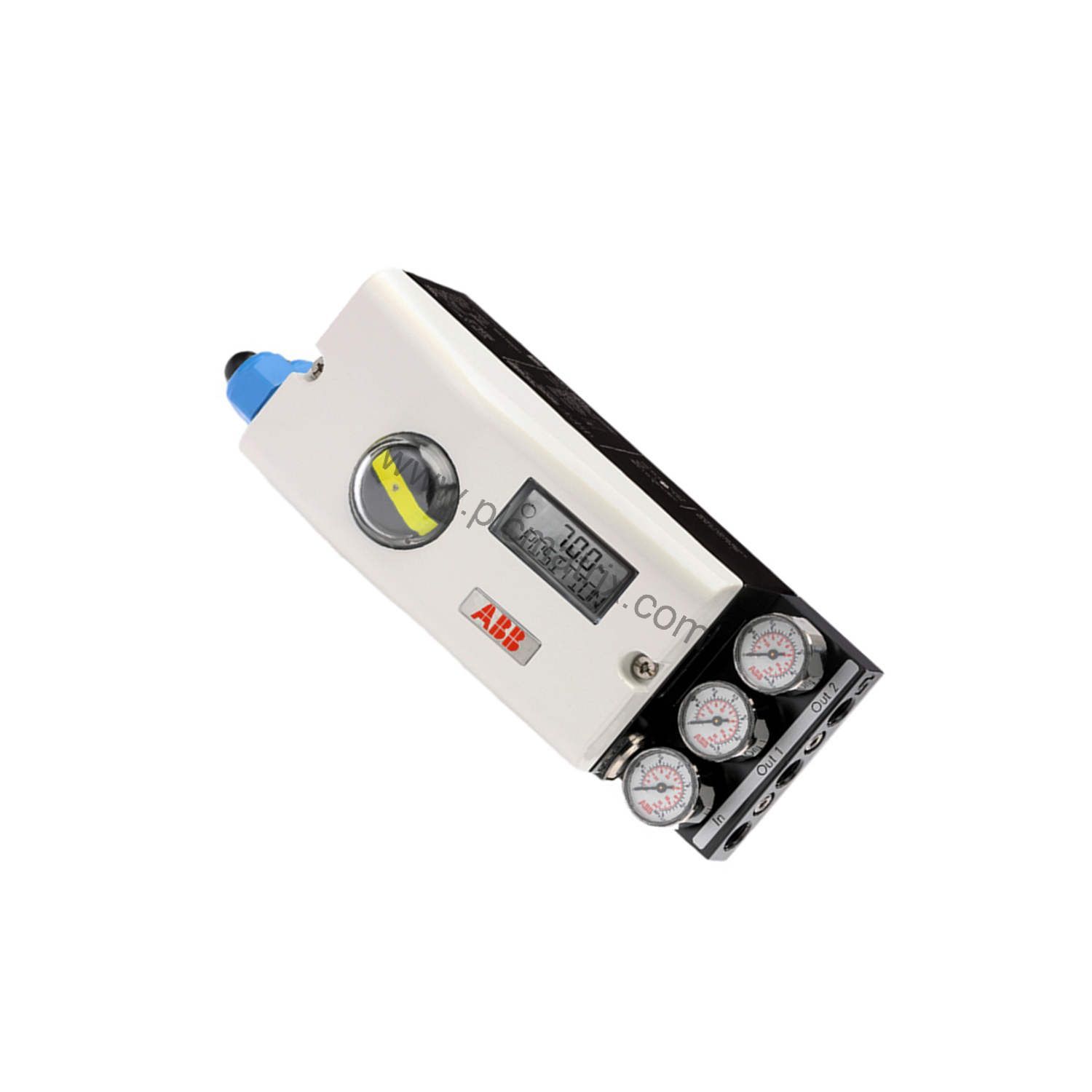

ABB V18345-1021120001 TZIDC Electro-Pneumatic Valve Positioner Buyer's Guide

Product Overview

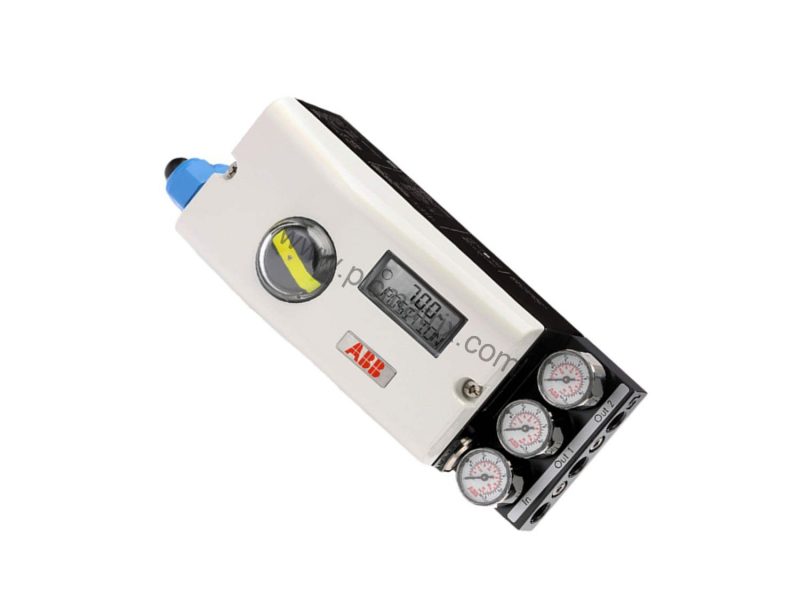

When precise valve control is critical in industrial processes, the ABB V18345-1021120001 TZIDC electro-pneumatic positioner delivers intelligent, configurable performance. This model features an aluminum case with IP 65 (NEMA 4X) protection, making it suitable for demanding environments. It accepts a 4-20mA input signal and includes an LKS adapter with connector plug plus an FSK module for HART communication, enabling remote configuration and diagnostics. The double-acting output with fail-freeze safe position ensures process stability during power or signal loss. With FM/CSA explosion protection approval, this positioner meets North American safety standards for hazardous locations. Its design includes electrical connections via 1/2-14 NPT and pneumatic connections via 1/4-18 NPT, simplifying integration into existing piping systems. Whether for new installations or retrofits, the V18345-1021120001 offers reliable, intelligent valve positioning.

Technical Specifications Breakdown

The ABB V18345-1021120001 operates across a wide ambient temperature range of -40 °C to +85 °C for operation, storage, and transport. This broad range ensures functionality in extreme cold or heat, from arctic pipelines to desert refineries. The relative humidity tolerance reaches 95% annually with condensation permissible during operation, and 75% non-condensing for transport and storage. Such robust environmental specs make it ideal for outdoor and washdown areas. The aluminum case, protected to IP 65 / NEMA 4X, resists dust ingress and low-pressure water jets. The electrostatic dipping varnish with epoxy resin, stove-hardened, provides corrosion resistance. The case is varnished black (RAL 9005, matt) with a Pantone 420 cap. Electrical connections use screw terminals supporting up to 1.0 mm² for options and 2.5 mm² for analog signals. Cable entries include two threads of 1/2-14 NPT or M20x1.5, with one cable gland and one pipe plug. Pneumatic connections use G 1/4 or 1/4-18 NPT threads. These detailed specs allow engineers to verify compatibility with existing wiring and tubing before purchase.

Industry Applications

The ABB V18345-1021120001 TZIDC positioner excels in oil and gas, chemical processing, power generation, and water treatment. In a refinery, its FM/CSA explosion protection and fail-freeze safe position maintain valve position during a signal loss, preventing hazardous leaks. In a chemical plant, the IP65 aluminum case resists corrosive atmospheres, while the HART communication capability enables remote calibration and diagnostics, reducing maintenance costs. For power generation applications, the wide temperature range ensures reliable operation near steam lines or in unheated enclosures. The double-acting output suits both linear and rotary control valves, providing versatility across different actuator types.

Installation & Setup Guidance

Proper installation of the V18345-1021120001 begins with verifying the electrical supply and signal wiring. Use screw terminals with wire sizes up to 2.5 mm² for analog signals, ensuring secure connections without over-tightening to avoid terminal strain. Route cables through the 1/2-14 NPT or M20x1.5 entries, using the provided cable gland for the main entry and the pipe plug for the unused port. For pneumatic connections, use 1/4-18 NPT fittings and ensure air supply is clean and dry. The LKS adapter and FSK module for HART communication require proper termination; consult the manual for network impedance settings. Mount the positioner on the actuator using standard brackets, ensuring the feedback linkage aligns correctly. After mounting, perform a zero and span calibration using the operator panel and indicator. Always power down the system before making electrical connections.

Maintenance & Reliability

Routine inspection of the ABB V18345-1021120001 extends its service life. Check the aluminum case for cracks or corrosion, especially in harsh environments. Verify that cable glands and pipe plugs remain tight to maintain IP65 protection. Periodically test the fail-freeze function by simulating a signal loss to confirm the valve holds position. Clean the exterior with a damp cloth; avoid solvents that may damage the epoxy varnish. Monitor ambient temperature to stay within the -40 °C to +85 °C range. For HART communication, verify that the FSK module is functioning by polling the device from a host system. Keep spare parts like terminal blocks and gaskets on hand to minimize downtime. Following these steps ensures reliable operation and reduces total cost of ownership.

Selection Guide & Purchasing Advice

Before ordering the V18345-1021120001, confirm that your application requires a double-acting positioner with fail-freeze safe position. Verify that the input signal is 4-20mA and that your control system supports HART communication via the FSK module. Check that the electrical connections (1/2-14 NPT) and pneumatic connections (1/4-18 NPT) match your existing piping. Ensure the ambient temperature and humidity conditions fall within the specified ranges. For hazardous locations, confirm that FM/CSA approval meets your local codes. The positioner does not include analog feedback or mechanical feedback options, so plan accordingly if remote position feedback is needed. BluePLC Industrial offers this model with expert support to help you select the right configuration. Contact their team to verify current lifecycle status and availability before placing an order.
