ABB V18345-1017121001 TZIDC Electro-Pneumatic Positioner Overview

Product Introduction

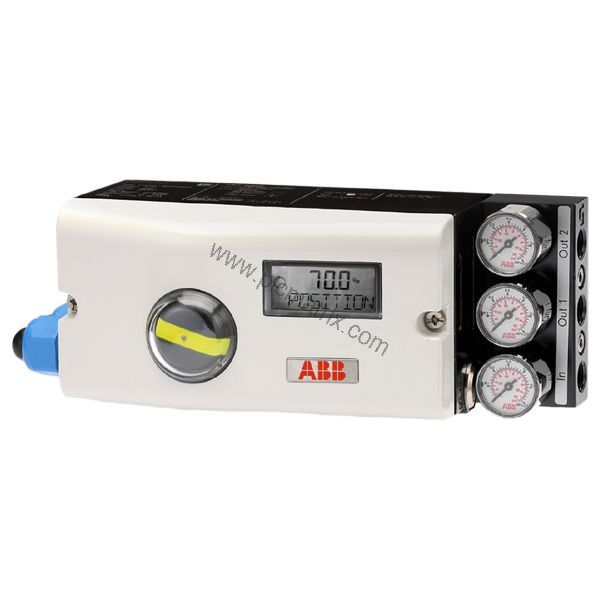

When a process valve fails to position accurately, production quality and safety suffer. The ABB V18345-1017121001 TZIDC electro-pneumatic positioner delivers precise, reliable control to eliminate such issues. Part of the TZIDC series, this intelligent positioner features an integrated indicator and operator panel for easy configuration and monitoring. Its robust aluminum housing with IP 65 (NEMA 4X) protection withstands harsh environments, making it a trusted choice for critical applications.

Technical Specifications Breakdown

The V18345-1017121001 operates with a 4...20 mA two-wire input, ensuring compatibility with standard control systems. It accepts a supply pressure of 1.4...6 bar (20...90 psi) and maintains low air consumption below 0.03 kg/h (0.015 scfm), independent of supply pressure. For safety, the positioner is ATEX certified as Ex II 2 G EEx ia II C T6, suitable for hazardous areas. The digital input recognizes 0...5 V DC as logical "0" and 11...30 V DC as logical "1", while the digital output supplies 5...11 V DC per DIN 19234/NAMUR. The unit weighs 1.7 kg and offers cable connection via 1/2-14 NPT and air pipe via 1/4-18 NPT threads.

Industry Applications

This positioner excels in chemical, petrochemical, and oil and gas plants where precise valve control is essential. Its ATEX approval allows safe installation in explosive atmospheres. For linear actuators following DIN/IEC 534/NAMUR or rotary actuators per VDI/VDE 3845, the V18345-1017121001 provides reliable positioning. The fail-safe and fail-freeze output ensures the valve stays at a safe position during power loss, reducing downtime and protecting processes.

Installation & Setup Guidance

Mount the positioner directly to the actuator using the provided aluminum case. For linear actuators, follow DIN/IEC 534/NAMUR standards; for rotary, use VDI/VDE 3845 guidelines. Connect the 4...20 mA two-wire input via the LKS adapter plug. Use 1/2-14 NPT for electrical cable entry and 1/4-18 NPT for air piping. After mounting, configure the positioner using the operator panel to set the input range and fail-safe behavior. Always verify the supply pressure remains within 1.4...6 bar to avoid damage.

Maintenance & Reliability

From a maintenance engineer's perspective, the V18345-1017121001 requires minimal upkeep. Its low air consumption reduces wear on pneumatic components. Periodically inspect the aluminum housing for damage and ensure the IP 65 seal remains intact. Check the proximity switches (SJ2-SN) if the digital position feedback option is installed. The varnished black (RAL 9005) surface resists corrosion, but avoid abrasive cleaning. Regular calibration checks every 6-12 months maintain accuracy. This reliability directly reduces unplanned maintenance costs.

Compatibility & Integration

The positioner integrates seamlessly with any 4...20 mA control system. Its digital input and output follow NAMUR standards, simplifying connection to PLCs or DCS. The optional mechanical kit for digital position feedback uses proximity switches SJ2-SN (NC or logical 1). For hazardous areas, the ATEX Ex ia IIC T6 rating ensures safe operation with intrinsic safety barriers. Always verify the control system's output matches the positioner's input requirements before installation.
