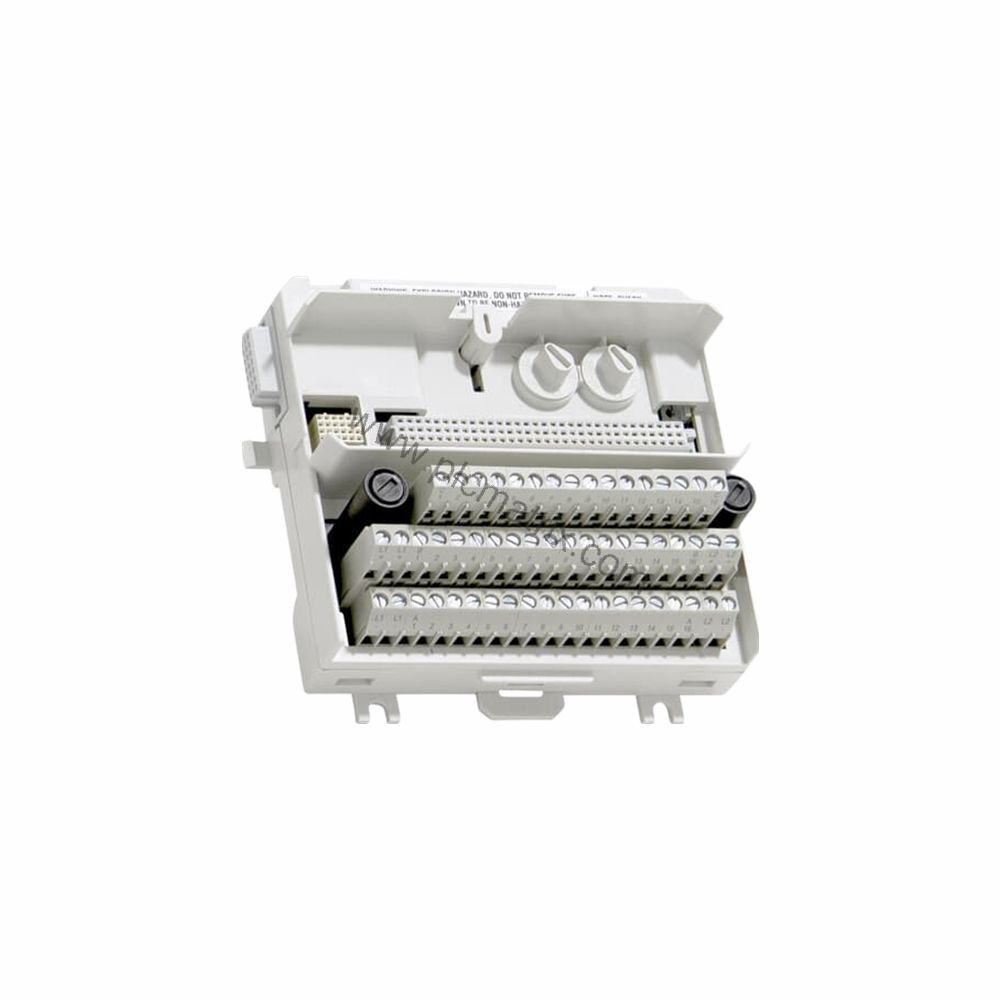

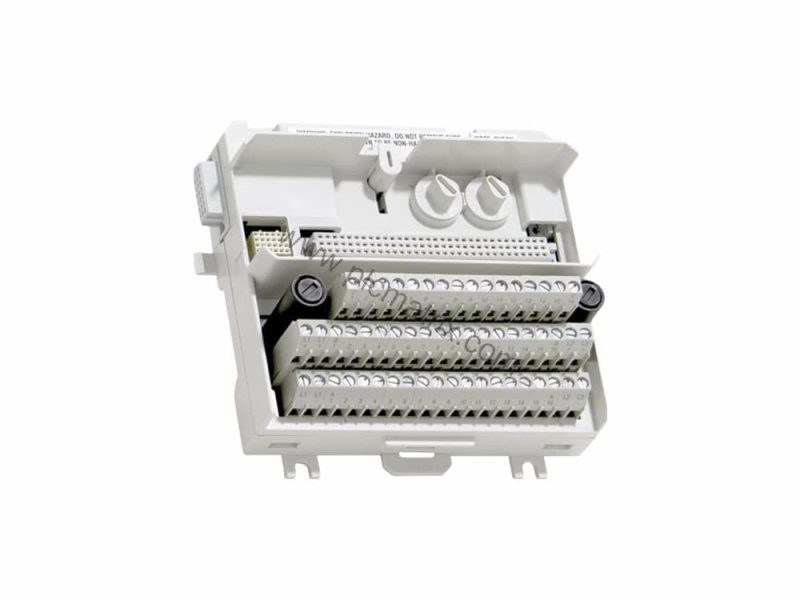

ABB TU836V1 MTU Module - 8-Channel I/O Terminal Block for DO820/DO821

Product Introduction

In industrial automation, reliable signal distribution and module addressing are critical for system uptime. The ABB TU836V1 Module Termination Unit (MTU) provides a robust solution for up to 8 I/O channels, distributing ModuleBus signals and generating correct addresses for I/O modules. Designed for use with ABB DO820 and DO821 modules, this extended-type terminal block ensures secure connections and mechanical keying to prevent incorrect module insertion.

Technical Specifications Breakdown

The TU836V1 supports a maximum rated voltage of 250 V and a maximum rated current of 3 A per I/O channel. Each channel includes one fused load power terminal and one signal return connection, organized into two groups of four channels. Process voltage connects to two individually isolated groups, enhancing flexibility. The unit accepts solid wires from 0.2 to 4 mm² and stranded wires from 0.2 to 2.5 mm² (24-12 AWG), with a recommended torque of 0.5-0.6 Nm and a stripping length of 7 mm. Dielectric test voltage is 2000 V AC, and the protection class is IP20 per IEC 60529.

Industry Applications

This MTU excels in discrete manufacturing and process control environments where DO820/DO821 digital output modules manage actuators, valves, and indicators. Its mechanical keying (36 possible configurations) prevents wrong module insertion, reducing commissioning errors. The DIN rail mounting and latching device simplify installation in control cabinets, while the two isolated process power groups allow separate power supplies for different field sections.

Installation & Setup Guidance

Mount the TU836V1 on a standard DIN rail using the mechanical latch for secure grounding. Configure the two mechanical keys according to your I/O module type—this only affects mechanical fit, not electrical function. Connect field signals and process power to the 16 process terminals (2 per channel) plus 4 process power and 4 process power (0V) terminals. Ensure wire stripping length is exactly 7 mm and torque terminals to 0.5-0.6 Nm. The MTU can be mounted in both directions, with a maximum ambient temperature of 55 °C (131 °F).

Maintenance & Reliability

Routine inspection of the terminal connections and mechanical latch ensures long-term reliability. The fused load power terminals protect each channel against overcurrent up to 3 A, while the process connection can handle up to 10 A. The unit operates in temperatures from 0 to +55 °C and stores from -40 to +70 °C. With pollution degree 2 and corrosion protection ISA-S71.04 G3, it withstands harsh industrial environments. Regular checks of the DIN rail grounding and keying mechanism help maintain system integrity.

Compatibility & Integration

The TU836V1 is specifically designed for ABB DO820 and DO821 I/O modules. It distributes ModuleBus signals to the connected module and passes them to the next MTU in the chain. The unit supports single I/O configuration and works with ABB automation systems that use ModuleBus architecture. For integration, verify that your controller supports the addressing scheme generated by the MTU.

Selection Guide & Purchasing Advice

Before ordering, confirm your I/O module type (DO820 or DO821) and the required mechanical keying configuration. The TU836V1 article number is 3BSE013237R1. Ensure your DIN rail and cabinet space accommodate the dimensions: 126 mm width (including connector), 64 mm depth (including terminals), and 110 mm height. Weight is 0.26 kg. For current availability and lifecycle status, contact BluePLC Industrial—a trusted supplier of ABB automation parts.
