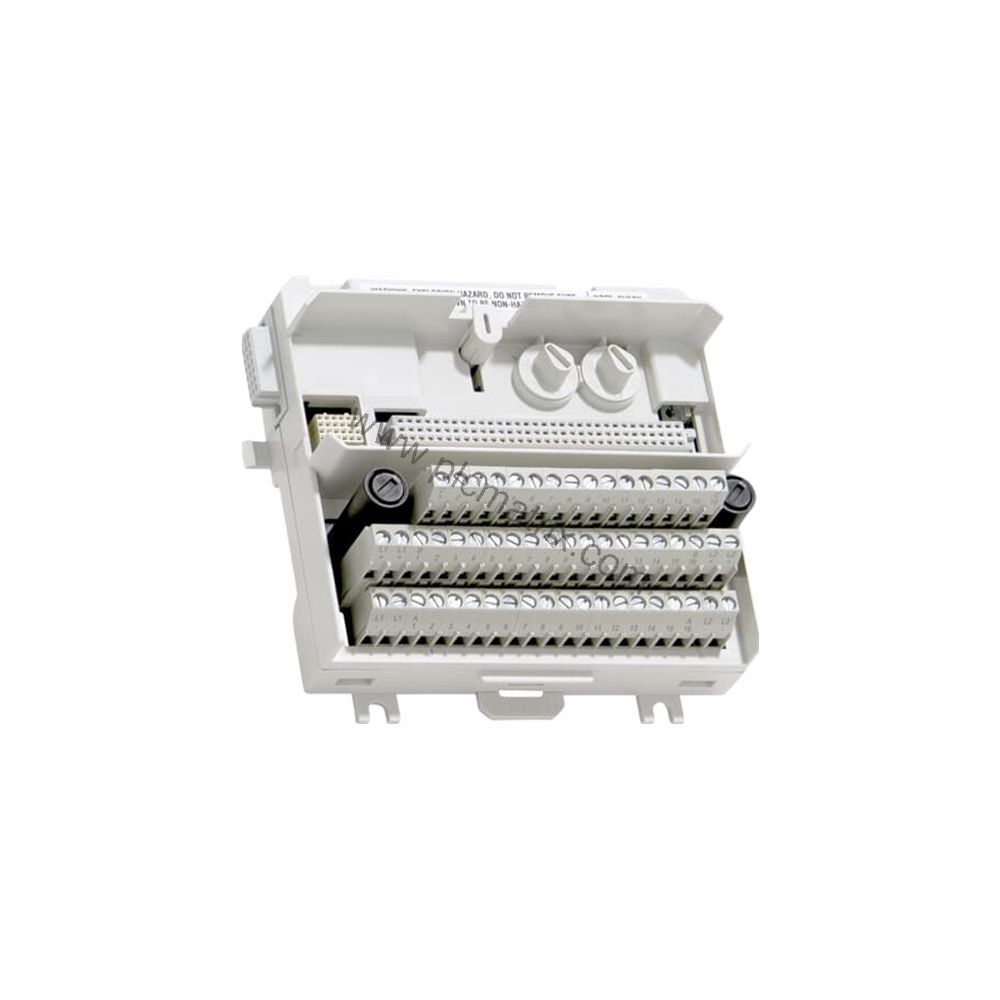

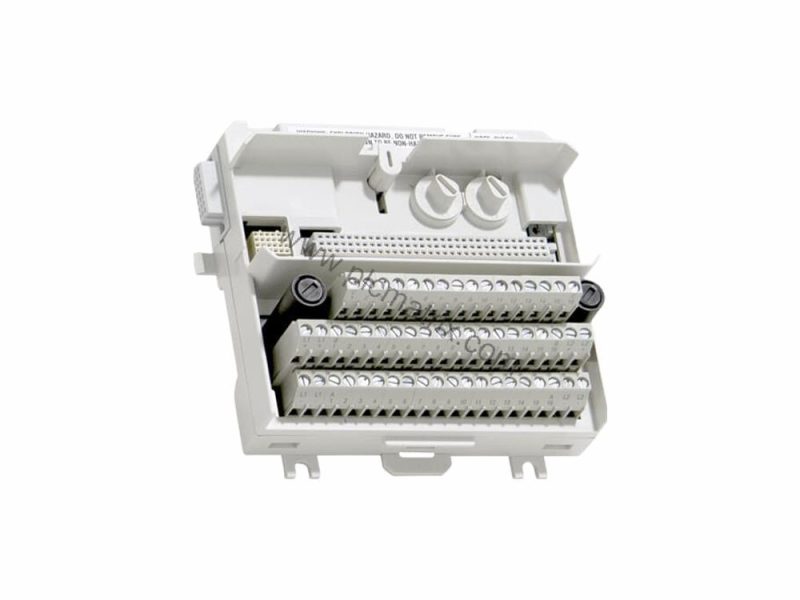

ABB TU830V1 Extended Module Termination Unit for Reliable I/O Systems

Product Introduction

When field wiring complexity and I/O module integration create bottlenecks in your control system, the ABB TU830V1 Extended Module Termination Unit (MTU) provides a streamlined solution. This passive unit connects field wiring to I/O modules and distributes the ModuleBus, supporting up to 16 I/O channels with two process voltage connections. Designed for ABB's S800 I/O series, it ensures reliable signal routing and mechanical keying to prevent incorrect module insertion.

Technical Specifications Breakdown

The TU830V1 handles a maximum rated voltage of 50 V and delivers up to 2 A per I/O channel, with a 5 A maximum per process connection. Each of the two individually isolated process voltage groups includes a 6.3 A fuse for overcurrent protection. The unit accepts solid wires from 0.2 to 4 mm² and stranded wires from 0.2 to 2.5 mm² (24–12 AWG), with a recommended torque of 0.5–0.6 Nm and a stripping length of 7 mm. It operates in temperatures from 0 to +55 °C and stores from -40 to +70 °C, with an IP20 protection class according to IEC 60529.

Industry Applications

In process manufacturing, the TU830V1 simplifies wiring for analog and digital I/O modules like AI810 or DO840, reducing installation errors and downtime. For discrete automation in assembly lines, its 16-channel capacity and 3-wire connection support efficient field signal management. The unit's mechanical keying and latching DIN rail mounting ensure secure grounding and module alignment, critical for harsh industrial environments.

Installation & Setup Guidance

Mount the TU830V1 on a DIN rail using its latching device for grounding. Connect field wiring to the terminal block with solid or stranded wires within the specified sizes, tightening to 0.5–0.6 Nm. The unit supports mounting in both directions and generates correct addresses for I/O modules by shifting outgoing position signals. Ensure the process voltage connections are properly fused (6.3 A per group) and verify dielectric test voltage compliance at 500 V a.c.

Maintenance & Reliability

Regularly inspect the fuses and terminal connections to maintain signal integrity. The TU830V1's corrosion protection meets ISA-S71.04: G3 standards, and its EMC compliance with EN 61000-6-4 and EN 61000-6-2 minimizes interference in noisy environments. Operating within 0 to +55 °C and 5 to 95% non-condensing humidity ensures long-term reliability. For cost-effective upkeep, verify the unit's lifecycle status with BluePLC Industrial before ordering replacements.

Compatibility & Integration

The TU830V1 integrates seamlessly with ABB S800 I/O modules, including AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820, and DP840. It supports single I/O configurations and connects to the ModuleBus for address generation and signal distribution. The unit's mechanical keying prevents wrong module insertion, simplifying system upgrades.

Buying Guide & Purchasing Advice

Before purchasing the TU830V1 (article number 3BSE013234R1), verify compatibility with your existing I/O modules and process voltage requirements (50 V max). Confirm the need for single or redundant I/O setups and ensure adequate DIN rail space (width 126 mm including connector). BluePLC Industrial offers this termination unit with detailed specifications and support for your automation projects. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
