ABB TU814V1 Compact Module Termination Unit for 16 I/O Channels

Product Overview

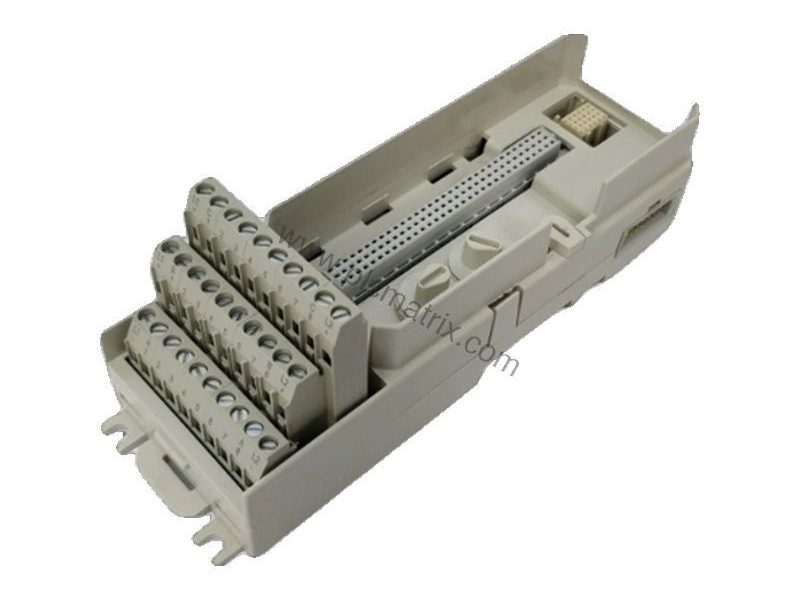

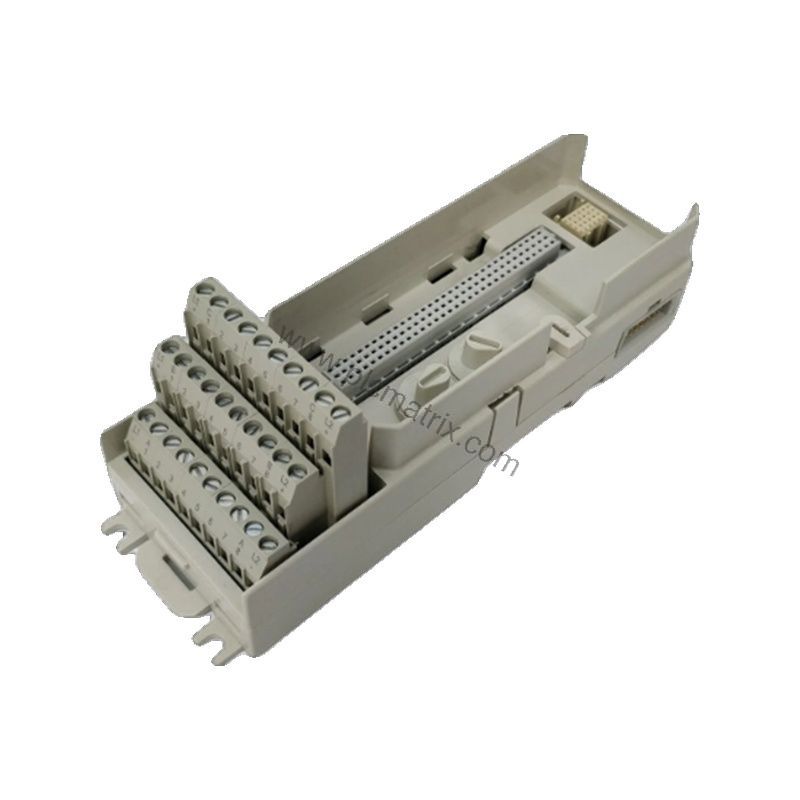

The ABB TU814V1 is a compact module termination unit (MTU) designed for connecting field wiring to I/O modules in industrial automation systems. It supports up to 16 I/O channels with two process voltage connections, rated for a maximum of 50 V and 2 A per channel. This passive unit includes three rows of crimp snap-in connectors for field signals and process power, along with a portion of the ModuleBus. Two mechanical keys with six positions each allow 36 configurations to match different I/O module types, purely for mechanical alignment without affecting functionality.

Technical Specifications

The TU814V1 offers 16 channels for 24 V d.c. inputs with current sourcing, divided into two isolated groups of 8 with voltage supervision. Input status indicators provide quick visual feedback. Key electrical ratings include a maximum current of 2 A per I/O channel and 5 A per process connection. Acceptable wire sizes range from 0.2 to 2.5 mm² (24 to 14 AWG) for stranded conductors. The dielectric test voltage is 500 V a.c. Environmental compliance includes CE marking, electrical safety per EN 61010-1 and UL 61010-1, hazardous location certifications (C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone), and marine approvals from ABS, BV, DNV-GL, and LR. Operating temperature is 0 to +55 °C (horizontal mounting) or 40 °C (vertical), with storage from -40 to +70 °C. Protection class is IP20 per IEC 60529. Dimensions: width 64 mm (2.52 in.), depth 64 mm, height 170 mm. Weight is 0.17 kg (0.37 lbs).

Industry Applications

The TU814V1 is well-suited for discrete manufacturing and process control environments where reliable field wiring termination is critical. In a packaging line, its 16 channels can handle multiple sensor inputs for product detection and sorting, while the isolated groups prevent cross-talk between different voltage zones. In a chemical processing plant, the MTU’s hazardous location certifications (ATEX Zone, C1 Div 2) enable safe operation in potentially explosive atmospheres. The mechanical keying system reduces installation errors when swapping I/O modules, minimizing downtime.

Installation & Setup Guidance

Mount the TU814V1 in either horizontal or vertical orientation, noting that vertical mounting reduces maximum ambient temperature to 40 °C. Use crimp snap-in connectors for field wiring, accepting stranded wires from 0.2 to 2.5 mm². Ensure process power connections are rated for up to 5 A per connection. Configure the two mechanical keys according to the I/O module type—this does not affect electrical operation but helps prevent mismatches. Verify that the MTU is properly grounded as Class I equipment per IEC 61140.

Maintenance & Reliability

The TU814V1 is a passive unit with no moving parts, requiring minimal maintenance. Periodic inspection of connectors and wiring for corrosion or looseness is recommended, especially in environments with high humidity or corrosive gases (G3 classification per ISA-S71.04). The IP20 protection level means the unit should be installed in a clean, dry enclosure. Regular checks of input status indicators can quickly identify channel faults, reducing troubleshooting time.

Compatible Systems & Integration

The TU814V1 works with a wide range of ABB I/O modules, including AI810, AI815, AI820, AI830, AI835A, AI835, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO840, DO880, DP820, and DP840. This broad compatibility simplifies system design and sparing. The MTU integrates into ABB’s automation architecture via the ModuleBus, supporting up to 30 process connections.

Selection Guide & Purchasing Advice

When ordering the TU814V1, verify that your I/O module is among the compatible list above. Confirm the required wire sizes and process voltage levels (max 50 V). The article number is 3BSE013233R1. For current lifecycle status and availability, contact BluePLC Industrial—a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
