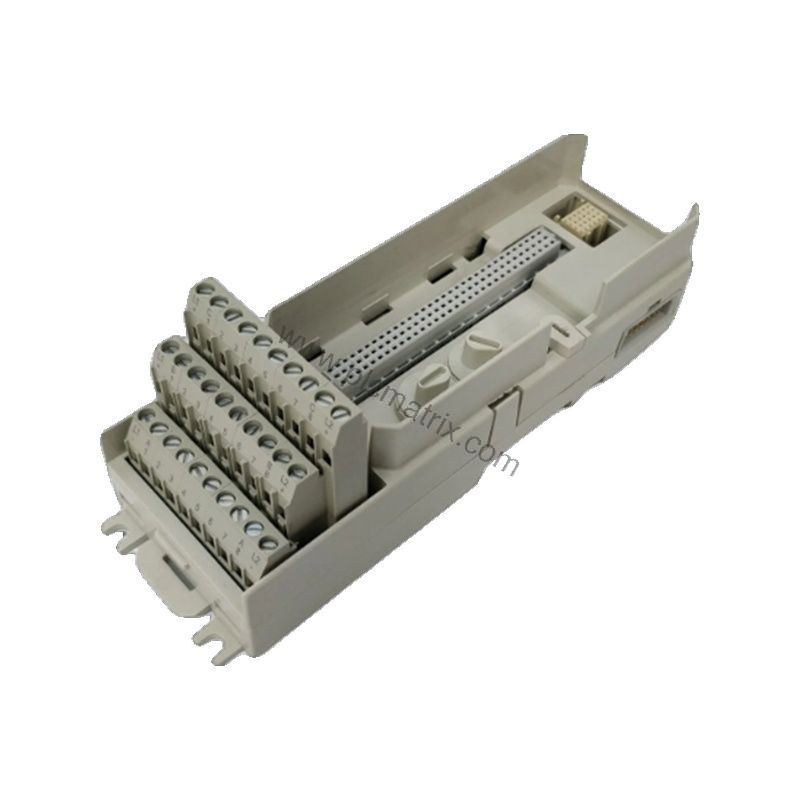

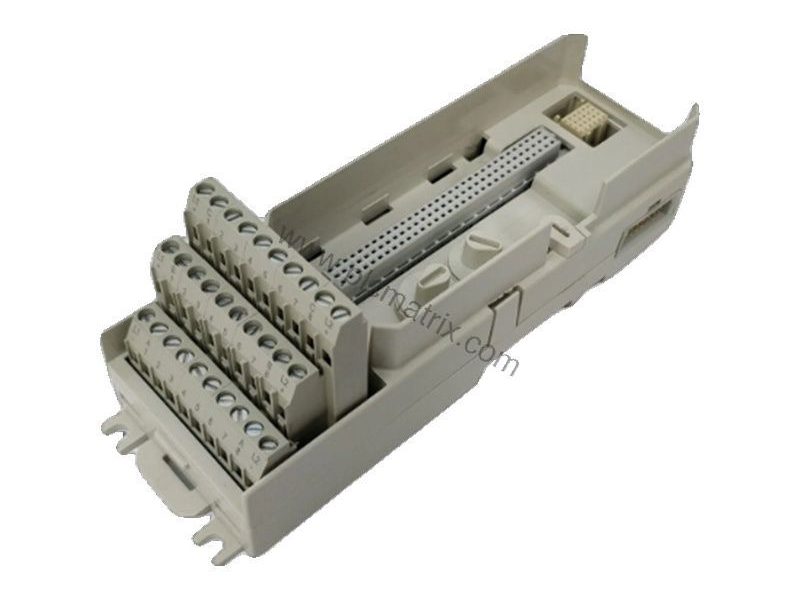

ABB TU811V1 8-Channel 250V Compact Module Termination Unit for S800 I/O

What Is the ABB TU811V1?

Are you struggling with reliable field wiring termination in your industrial control system? The ABB TU811V1 is a compact module termination unit (MTU) designed for the S800 I/O series. This passive unit connects field wiring to I/O modules and distributes the ModuleBus signal to the connected module and the next MTU. It also generates the correct address for the I/O module by shifting outgoing position signals. With two mechanical keys offering 36 configurations, the TU811V1 prevents insertion of the wrong I/O module, ensuring system integrity.

Technical Specifications Breakdown

The TU811V1 supports up to 8 isolated channels with a voltage rating of 250 V. Each I/O channel handles a maximum current of 3 A, making it suitable for moderate-load field signals. The unit accepts solid wires from 0.2 to 4 mm² and stranded wires from 0.2 to 2.5 mm² (24–12 AWG). Recommended torque is 0.5–0.6 Nm with a stripping length of 7 mm. Dielectric test voltage is 2000 V a.c., ensuring robust isolation. Operating temperature ranges from 0 to +55 °C (+32 to +131 °F), with approvals issued for +5 to +55 °C. Storage temperature spans -40 to +70 °C (-40 to +158 °F). The unit measures 64 mm wide (including connector), 64 mm deep (including terminals), and 170 mm high (including latch), weighing just 0.17 kg (0.37 lbs). Protection class is IP20 according to IEC 60529.

Industry Applications

In process industries such as chemical plants or water treatment facilities, the TU811V1 provides reliable termination for digital I/O modules like DI820, DI821, DO820, and DO821. Its compact design saves cabinet space, while mechanical keying prevents costly misconfiguration errors. For example, in a batch control system using S800 I/O, the TU811V1 ensures secure field wiring connections and proper ModuleBus addressing, reducing commissioning time and downtime. Its ability to handle up to 8 isolated channels makes it ideal for applications requiring signal isolation.

Installation & Setup Guidance

Mount the TU811V1 on a DIN rail using the integrated latching device for grounding. The unit supports both horizontal and vertical mounting orientations. For horizontal mounting, the maximum ambient temperature is 55 °C (131 °F); for vertical mounting, it is 40 °C (104 °F). Connect field wiring via the terminal block, ensuring proper torque (0.5–0.6 Nm) and stripping length (7 mm). Use the two mechanical keys to configure the MTU for the intended I/O module type—this is a mechanical guide only and does not affect electrical functionality. The TU811V1 is designed for single I/O configurations, not redundant setups.

Maintenance & Reliability

The TU811V1 is a passive unit with no active components, which inherently reduces maintenance needs. However, periodic inspection of terminal connections and mechanical keying is recommended to ensure secure contact. The unit is built to withstand harsh environments with corrosion protection per ISA-S71.04: G3 and relative humidity from 5 to 95% non-condensing. EMC compliance with EN 61000-6-4 and EN 61000-6-2 ensures reliable operation in industrial electromagnetic environments. By maintaining clean connections and verifying key alignment, you can extend the service life of the TU811V1 and reduce unexpected downtime.

Compatible Systems & Integration

The TU811V1 is designed for the ABB S800 I/O system and works with specific I/O modules: DI820, DI821, DO820, and DO821. It connects to the ModuleBus and distributes signals to the I/O module and the next MTU in the chain. The unit supports both solid and stranded wire sizes, making it compatible with standard field wiring practices. For integration, ensure the MTU is correctly keyed for the intended module type to avoid mechanical mismatch. The TU811V1 is CE marked and carries marine certifications from ABS, BV, DNV-GL, and LR, expanding its use in marine and offshore applications.

Buying Guide & Selection Advice

Before purchasing the ABB TU811V1, verify that your system uses S800 I/O modules and that you require a single (non-redundant) MTU. Confirm that the mechanical keying matches your I/O module type (DI820, DI821, DO820, or DO821). The TU811V1 is available from BluePLC Industrial, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with BluePLC Industrial before ordering. For applications requiring higher channel counts or redundant configurations, consult our team for alternative solutions.
