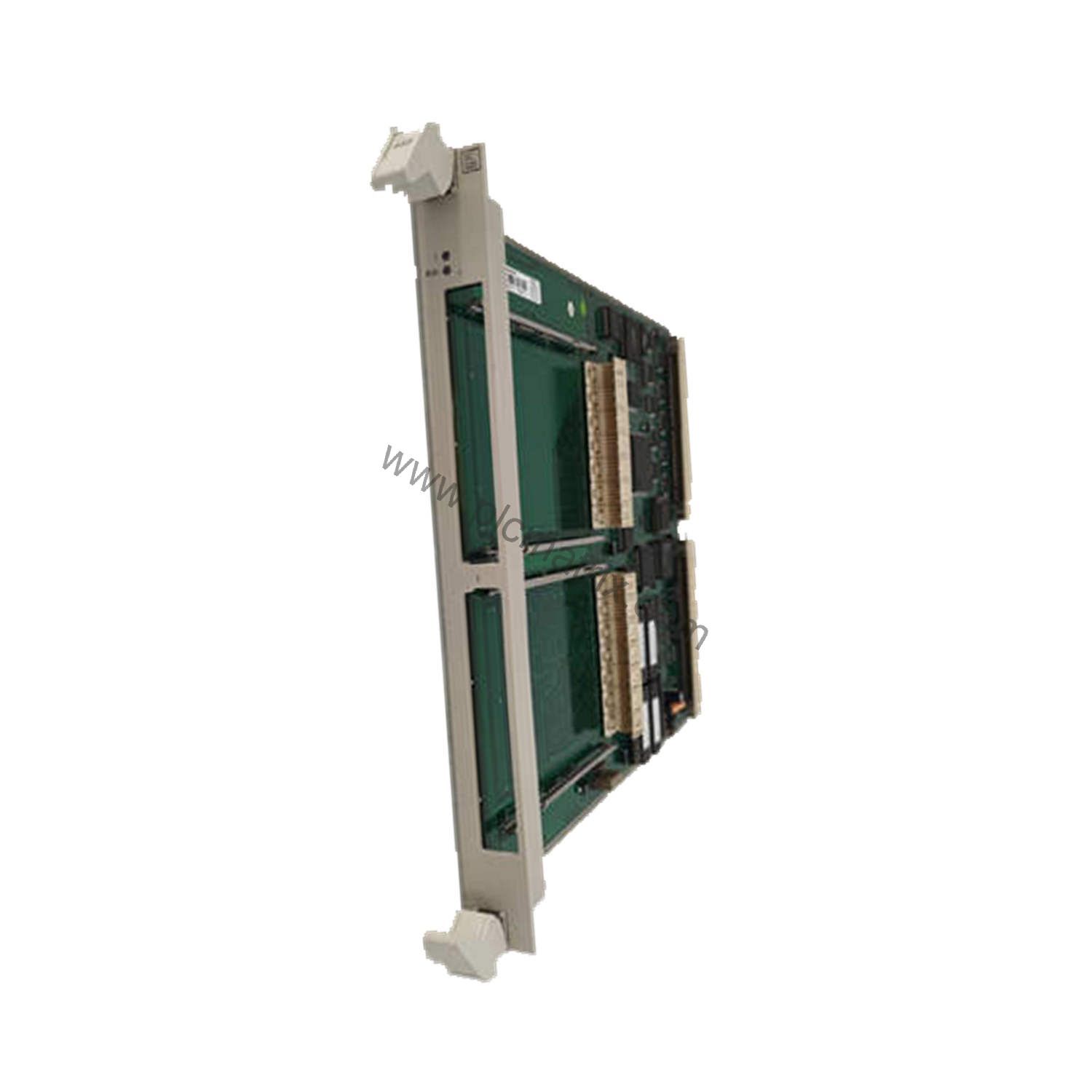

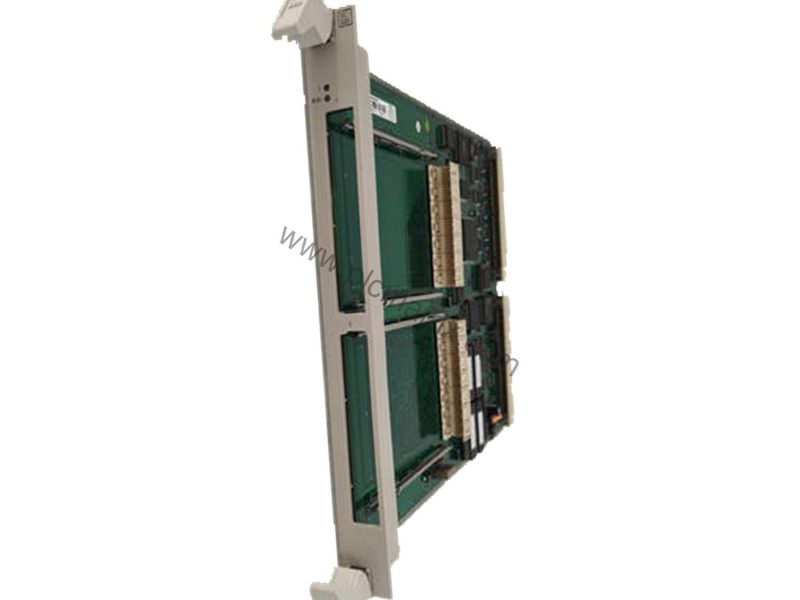

ABB SC520 3BSE003816R1 Submodule Carrier with Local CPU for Industrial Communication

Product Overview

When a communication module in your industrial network fails, system downtime can escalate quickly. The ABB SC520 3BSE003816R1 Submodule Carrier provides a robust solution by integrating a local CPU and supporting MB300 and MB300E communication protocols. This carrier board fits into a subrack and handles data exchange reliably, reducing the risk of network interruptions.

Technical Specifications

The SC520 operates with a current consumption of 1.5 A at 5 V and 0.006 A at 24 V, ensuring efficient power usage. Its total power dissipation is only 0.8 W, minimizing heat generation in the cabinet. The unit weighs 0.742 kg and measures 291 mm deep, 300 mm high, and 30 mm wide, making it compact for crowded control panels.

Industry Applications

In process industries such as oil and gas, the SC520 serves as a communication backbone between controllers and remote I/O. Its local CPU offloads processing tasks, improving response times. For manufacturing lines, the module supports MB300E networks, enabling high-speed data transfer between PLCs and drives.

Installation & Setup Guidance

Mount the SC520 in the designated carrier position within the subrack. Ensure the board is fully seated and locked. Power connections require 5 V and 24 V supplies; verify polarity before energizing. After installation, initialize the module and check for error codes: 01 indicates initialization failure, 03 means the board has halted, and 04 signals a missing or inaccessible board.

Maintenance & Reliability

Routine inspection of the SC520 should focus on verifying proper seating and checking for error codes during startup. Because the module dissipates only 0.8 W, thermal stress is low, extending component life. Keep the subrack environment within standard industrial temperature ranges and free of excessive dust.

Compatibility & Integration

The SC520 is designed to work with ABB automation systems that utilize MB300 and MB300E communication protocols. It integrates seamlessly into existing subrack configurations. For marine or coated environments, consider the SC520M 3BSE016237R1 variant.

Buying Guide & Purchasing Advice

Before ordering, confirm your subrack type and required communication protocol (MB300 or MB300E). Verify the product ID 3BSE003816R1 matches your system revision. BluePLC Industrial stocks the ABB SC520 and can advise on current lifecycle status and availability.
