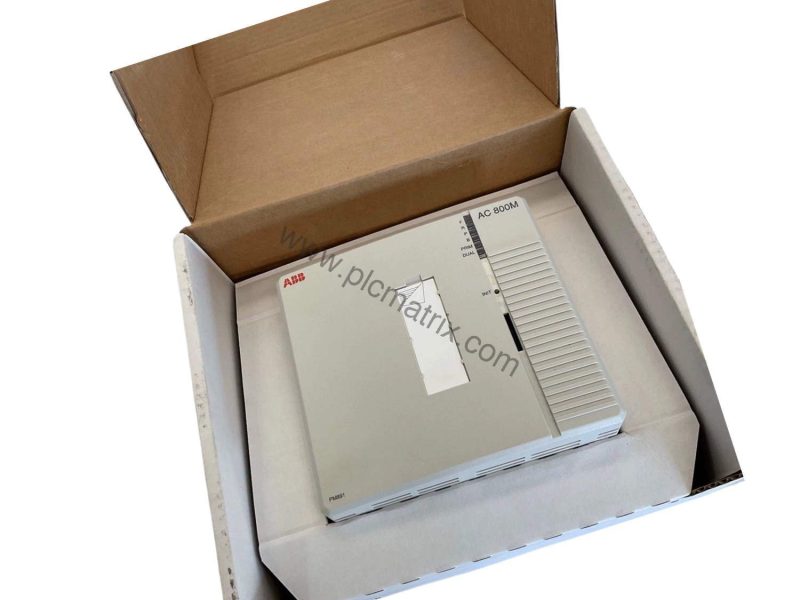

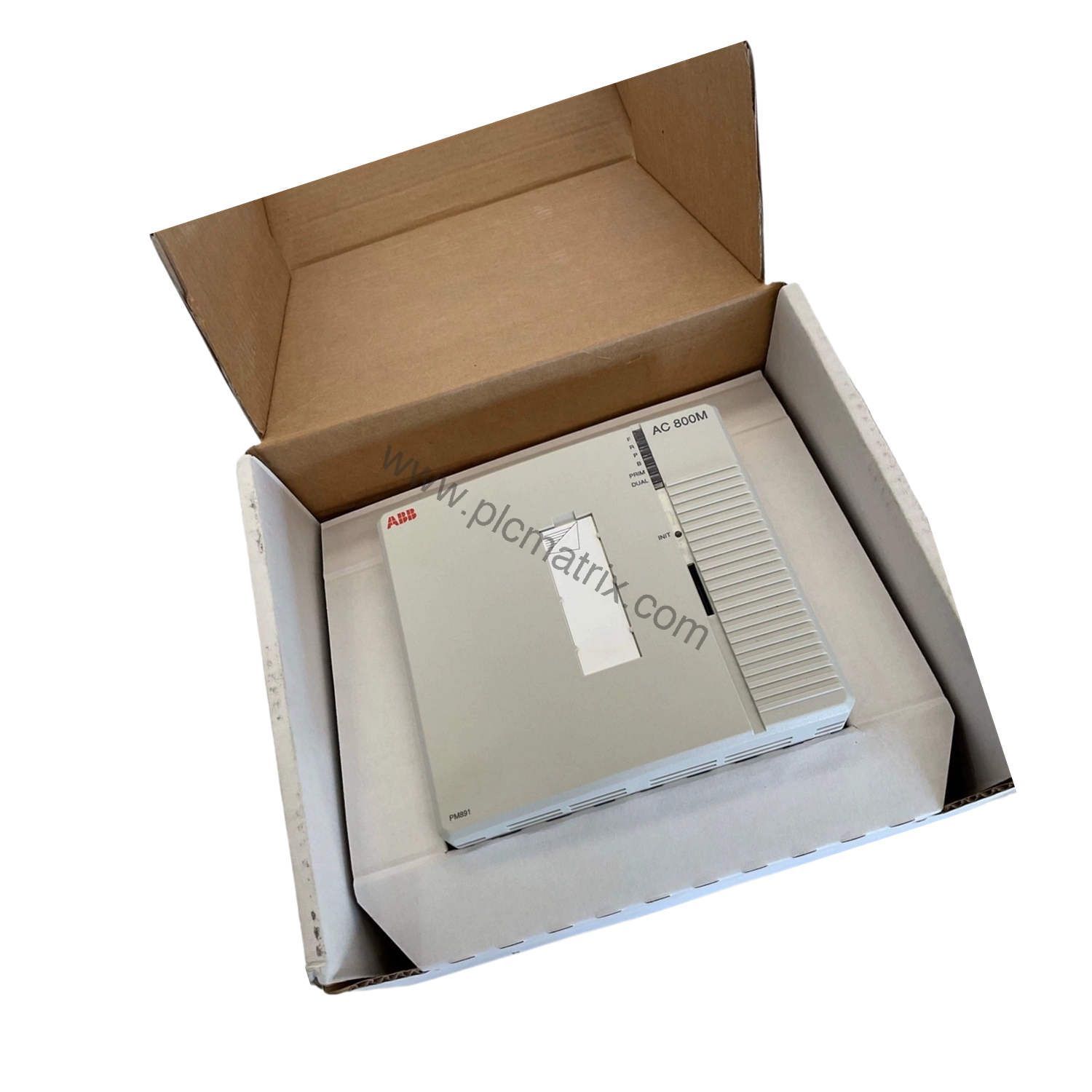

ABB PM891K01 Processor Unit for 800xA Control Systems

Product Introduction

When industrial processes demand precise and reliable control, the ABB PM891K01 processor unit provides a robust solution. This compact module, part of the ABB 800xA family, is designed for high-speed boolean operations with a performance rating of 0.043 ms. It operates on a 24 V DC power supply (19.2-30 V DC) and features a 450 MHz clock frequency, making it suitable for time-critical automation tasks. The PM891K01 includes a PM891 CPU module, TB850 CEX-bus terminator, and TB853 RCU Control Link Terminator, ensuring seamless integration into existing systems. Note that no license is included, and compatibility requires 800xA 6.0.2 and onwards.

Technical Specifications Breakdown

The PM891K01 offers impressive memory capacity with 256 MB total memory, of which 208.985 MB is available for applications. It supports up to 32 applications per controller, with 64 programs per application and 128 diagrams per program. The processor type is MPC8270, and the unit includes 16 MB flash PROM for firmware storage. Power consumption is efficient at 660/750 mA typical/max at +24 V, with a maximum power dissipation of 18 W. The module provides two Ethernet channels at 10/100 Mbit/s, supporting MMS and IAC protocols for control network communication. For service and diagnostics, an RS-232C interface (COM4) is available at 9,600 baud, opto-isolated without RTS-CTS support.

Industry Applications

In manufacturing environments, the PM891K01 excels at managing complex production lines where cycle times down to 1 ms are required. Its ability to handle up to 32 tasks per controller with different cycle times makes it ideal for applications needing precise timing, such as packaging, material handling, and assembly automation. The module’s event queue can store up to 3000 events per OPC client, enabling detailed process monitoring and data logging. In process industries like chemical or pharmaceutical plants, the redundant power supply status input and clock synchronization within 1 ms between AC800M controllers ensure high availability and coordinated control.

Installation & Setup Guidance

Mount the PM891K01 in a suitable cabinet with IP20 protection as per EN 60529. Ensure the power supply is within 19.2-30 V DC and that the unit is properly grounded. Connect the CEX-bus terminator (TB850) and RCU Control Link Terminator (TB853) as included. For Ethernet communication, use a 100 Mbit/s switched Ethernet backbone as recommended. The RS-232C service port (COM4) allows configuration via a standard RJ-45 cable. Verify compatibility with your 800xA system version (6.0.2 or later) before installation.

Maintenance & Reliability

Regular inspection of the PM891K01 ensures long-term reliability. Check power supply voltage and current draw periodically to confirm operation within specified limits (660/750 mA typical/max). Monitor ambient temperature, keeping it between 0 to +55 °C operating range. The module is designed for industrial environments with pollution degree 2 and G3 corrosion protection. No built-in backup battery is present, so external UPS or redundant power is recommended for critical applications. Follow manufacturer guidelines for cleaning; use only dry, low-pressure air to remove dust from vents.

Compatibility & Integration

The PM891K01 integrates seamlessly with ABB 800xA systems version 6.0.2 and later. It supports up to 12 communication modules on the CEX bus with a maximum supply current of 2.4 A. For I/O expansion, it can handle up to 84 modules on the Modulebus, with scan rates from 0 to 100 ms. The module is compatible with both electrical and optical I/O clusters, supporting up to 7 optical clusters in non-redundant and redundant configurations. Control network communication uses MMS and IAC protocols over 100 Mbit/s switched Ethernet. The unit also supports clock synchronization via CNCP protocol for coordinated control across multiple controllers.

Selection Guide & Purchasing Advice

When selecting the PM891K01, verify that your system runs 800xA version 6.0.2 or later, as earlier versions are not compatible. Confirm that the included TB850 and TB853 terminators meet your bus requirements. Note that no software license is included, so purchase separately if needed. For redundant configurations, the PM891K01 supports switchover within 10 ms max. Contact BluePLC Industrial for current availability and lifecycle status before ordering, as product status may change. BluePLC Industrial is a reliable supplier of ABB automation components, offering genuine parts and expert support.
