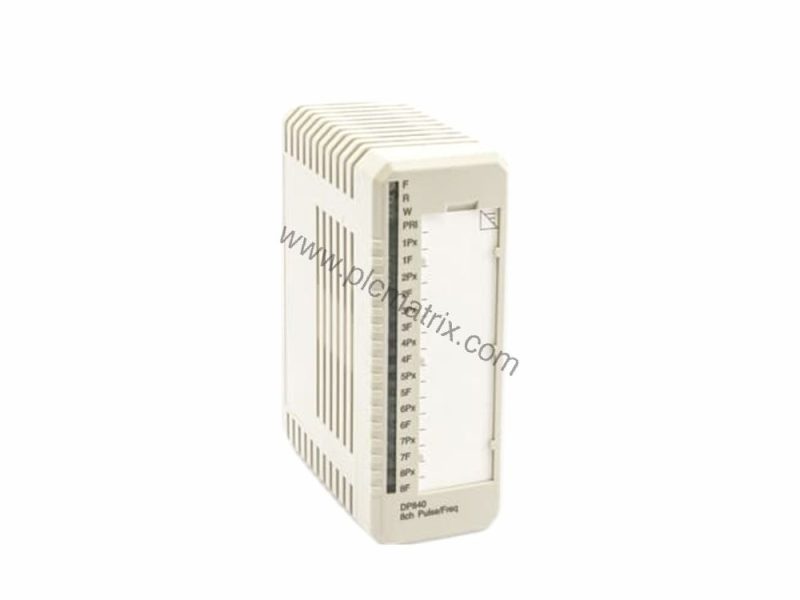

ABB DP840 Pulse Counter Module: 8-Channel Frequency Measurement for Industrial Automation

Solving High-Speed Pulse Counting Challenges in Process Automation

When your production line requires precise frequency or speed measurement from multiple sensors simultaneously, the ABB DP840 pulse counter module delivers a reliable solution. This 8-channel module handles pulse counts up to 20 kHz per channel, making it ideal for monitoring rotating machinery, flow meters, or conveyor speeds in demanding industrial environments.

Technical Specifications Breakdown

8 Independent Channels with Flexible Input Modes

Each of the eight channels on the DP840 can be configured for pulse count accumulation in a 16-bit counter or frequency (speed) measurement from 0.5 Hz to 20 kHz. The inputs can also function as digital input (DI) signals, offering versatility for mixed-signal applications.

Signal Interface and Isolation

The module supports NAMUR, 12 V, and 24 V transducer signal levels, with a built-in current-limited sensor power supply. Groupwise isolation from ground ensures signal integrity and protects against ground loops. The rated insulation voltage is 50 V, with a dielectric test voltage of 500 V AC.

Diagnostic Capabilities

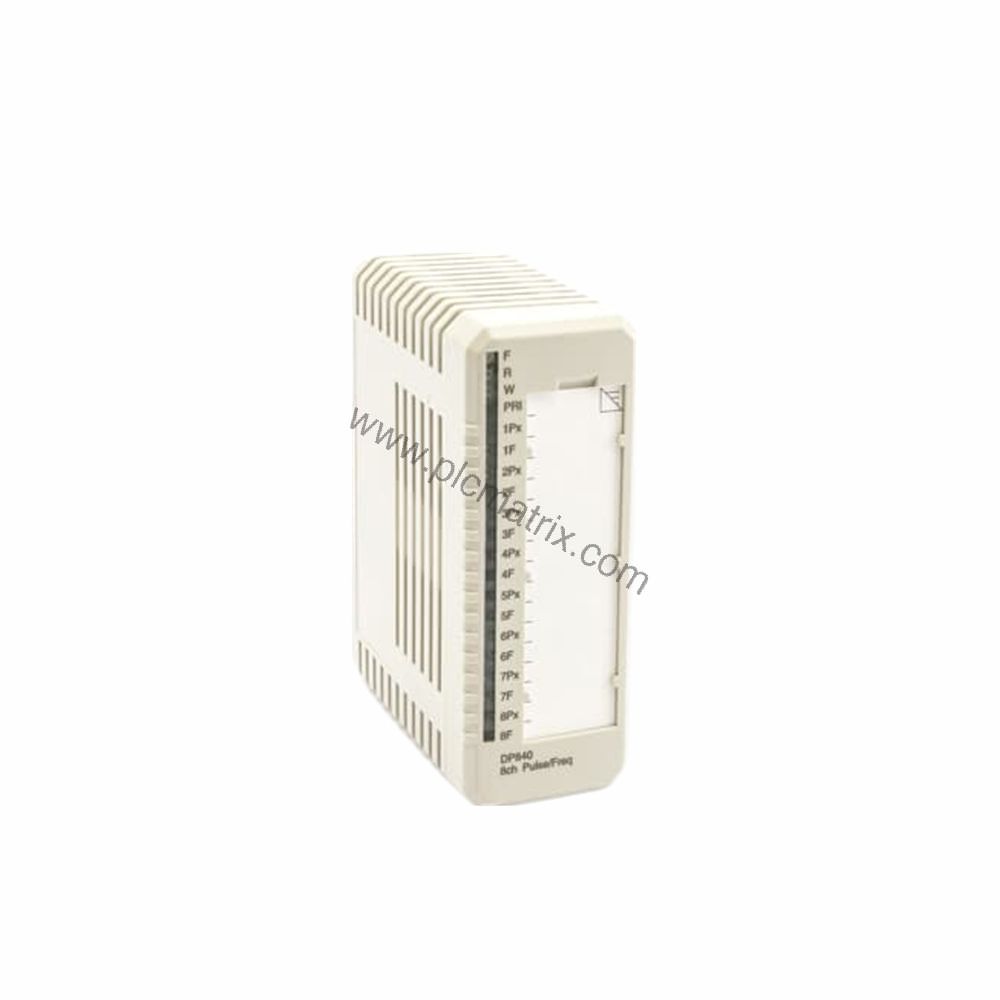

Advanced on-board diagnostics include process voltage supervision, loop supervision, and status indication via front LEDs (Fault, Run, Warning, Primary, and per-channel Pulse/Fault). The module performs cyclic self-diagnostics, reporting Module Error, Module Warning, and Channel Error conditions.

Industry Applications

Flow Measurement in Chemical Processing

In chemical plants, the DP840 connects to NAMUR-compliant flow sensors to measure pulse output frequency, providing accurate flow rate data for batch control. Its 200-meter maximum field cable length allows remote sensor placement.

Speed Monitoring in Material Handling

For conveyor systems, the module tracks motor speed via 24 V proximity sensors. The configurable input filter helps reject electrical noise, ensuring reliable speed readings even in electrically noisy environments.

Installation and Setup Guidance

The DP840 mounts on S800 series Module Termination Units (MTUs) such as TU810V1, TU812V1, TU814V1, TU830V1, or TU833. The module is 45 mm wide, 102 mm deep (111 mm including connector), and 119 mm high, weighing 0.15 kg. Use the keying code CF for correct orientation. Ensure proper grounding per Class I (IEC 61140) requirements.

Maintenance and Reliability

With a power dissipation of only 4 W, the DP840 generates minimal heat, contributing to long service life. The module operates from 0 to +55 °C (approvals issued for +5 to +55 °C) and stores from -40 to +70 °C. It is protected to IP20 and rated for pollution degree 2. Corrosion protection meets ISA-S71.04 G3 standards. Regular inspection of front LED indicators and verification of process voltage supervision are recommended to ensure continued reliable operation.

Compatibility and Integration

The DP840 integrates with ABB’s S800 I/O system and works with a wide range of MTUs including TU810, TU812, TU814, TU818, TU830, TU833, TU842, TU843, TU844, TU845, TU852, and TU854. It communicates via the Modulebus, consuming 115 mA from the +5 V bus and additional current from the +24 V external supply depending on load. The module supports both single and redundant configurations for high-availability systems.

Selection Guide and Purchasing Advice

Before ordering the ABB DP840 (article number 3BSE028926R1), verify your system’s MTU compatibility and ensure the required signal type (NAMUR, 12 V, or 24 V) matches your transducers. The module is CE marked and carries electrical safety certifications per EN 61010-1 and UL 61010-1, as well as hazardous location approvals (C1 Div 2, C1 Zone 2, ATEX Zone 2). For current availability and lifecycle status, please contact BluePLC Industrial.
