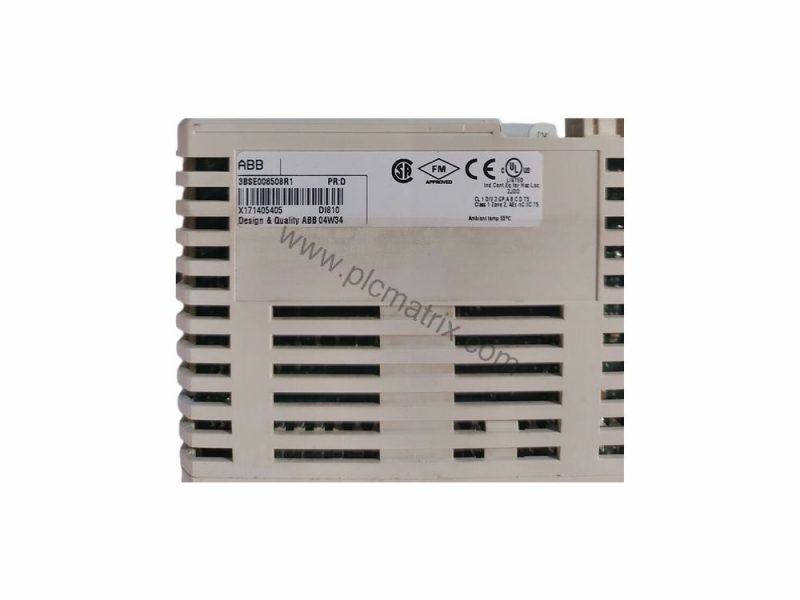

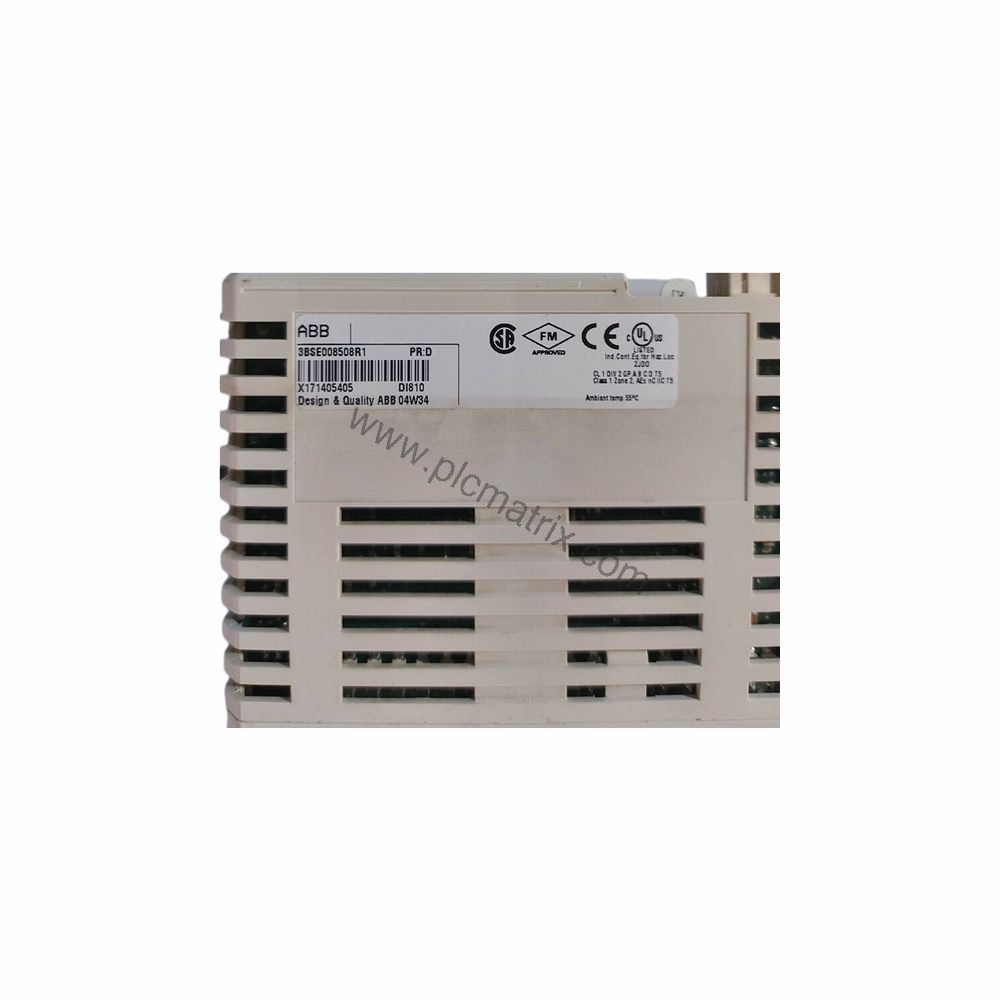

ABB DI818 32-Channel Digital Input Module for S800 I/O

Product Overview

When your control system demands reliable digital signal acquisition, the ABB DI818 delivers precise 24 V DC input monitoring across 32 channels. This module, part of the ABB S800 I/O family, uses current sinking inputs to interface with sensors and switches in industrial environments. Each input channel includes current limiting, EMC protection, an LED indicator, and optical isolation for robust performance. The DI818 is designed for applications where voltage supervision and signal filtering are critical to maintaining process integrity.

Technical Specifications Breakdown

The DI818 operates with an input voltage range of 18 to 30 V DC and draws 4.3 mA at 24 V. It features two isolated groups of 16 channels, each with a voltage supervision input that detects process voltage loss and reports errors via the ModuleBus. Signal filtering is selectable at 2, 4, 8, or 16 ms, allowing you to tailor noise rejection to your application. The module has an input impedance of 5.6 kΩ and supports field cable lengths up to 600 meters. Power dissipation is typically 3.1 W, with a +5 V ModuleBus current consumption of 70 mA and +24 V external consumption of 25 mA. Isolation is groupwise from ground, with a rated insulation voltage of 50 V and a dielectric test voltage of 500 V AC.

Industry Applications

The DI818 excels in discrete manufacturing, process control, and material handling systems where 24 V DC sensors and limit switches are common. Its two isolated groups allow you to connect devices from different power zones without ground loops, while voltage supervision alerts operators to power supply failures. For example, in a packaging line, the DI818 can monitor proximity sensors and photocells, with selectable filter times reducing false triggers from vibration or electrical noise. The module's 32-channel density saves cabinet space, making it ideal for high-I/O-count installations.

Installation & Setup Guidance

Mount the DI818 on an S800 I/O base unit (MTU) such as the TU818, TU819, or TU830. Ensure the MTU provides proper field wiring connections and current limiting for sensor power. Connect 24 V DC field devices to the input terminals, observing polarity for sinking inputs. Configure the input filter time via the ModuleBus to match your application's noise environment. The module's IP20 protection requires installation in a clean, dry enclosure. For vertical mounting in a compact MTU, the maximum ambient temperature is 40 °C; otherwise, it is 55 °C. Always verify that the process voltage supervision inputs are wired to the correct power source to enable error detection.

Maintenance & Reliability

Regularly inspect the DI818's front panel LEDs for fault (F), run (R), warning (W), and channel status indicators. The module provides diagnostics for process voltage supervision per group, along with module error, module warning, and channel error signals. Operate the module within its specified temperature range of 0 to +55 °C (or +5 to +55 °C for approvals) and store it between -40 and +70 °C. The corrosion protection meets ISA-S71.04 G3, and the module complies with EMC standards EN 61000-6-4 and EN 61000-6-2. For long-term reliability, keep the environment within 5 to 95% non-condensing humidity and avoid exposure to conductive pollutants.

Compatibility & Integration

The DI818 integrates seamlessly with ABB's S800 I/O system via the ModuleBus. It is compatible with MTUs TU818, TU819, and TU830, which provide the necessary field wiring and optional current limiting. The module uses a keying code EA for correct insertion. It supports CE marking and electrical safety standards EN 61010-1, UL 61010-1, EN 61010-2-201, and UL 61010-2-201. Marine certifications from ABS, BV, DNV, and LR are available. For system integration, ensure your controller supports the ModuleBus protocol and can read the DI818's channel error signals. Please verify current lifecycle status and availability with BluePLC Industrial before ordering.
