ABB AI931S Analog Input Module for Hazardous Area Zone 1 Applications

Product Overview

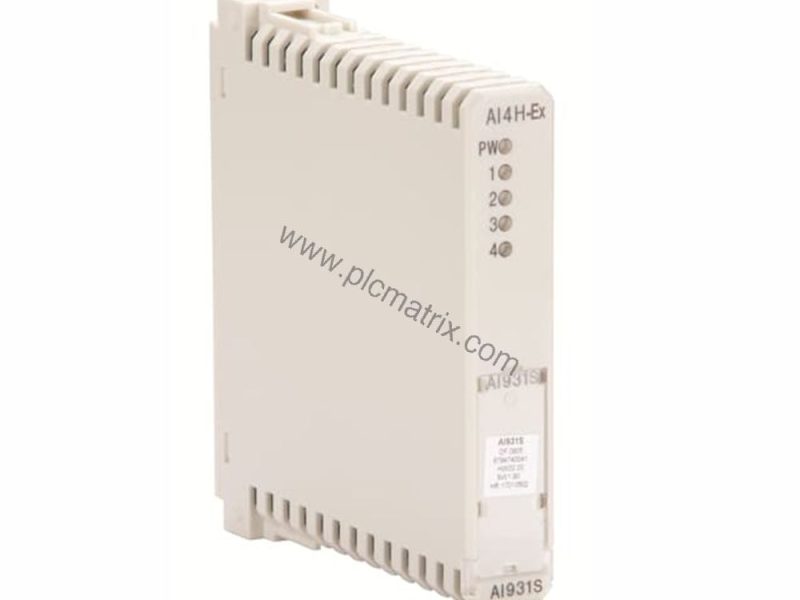

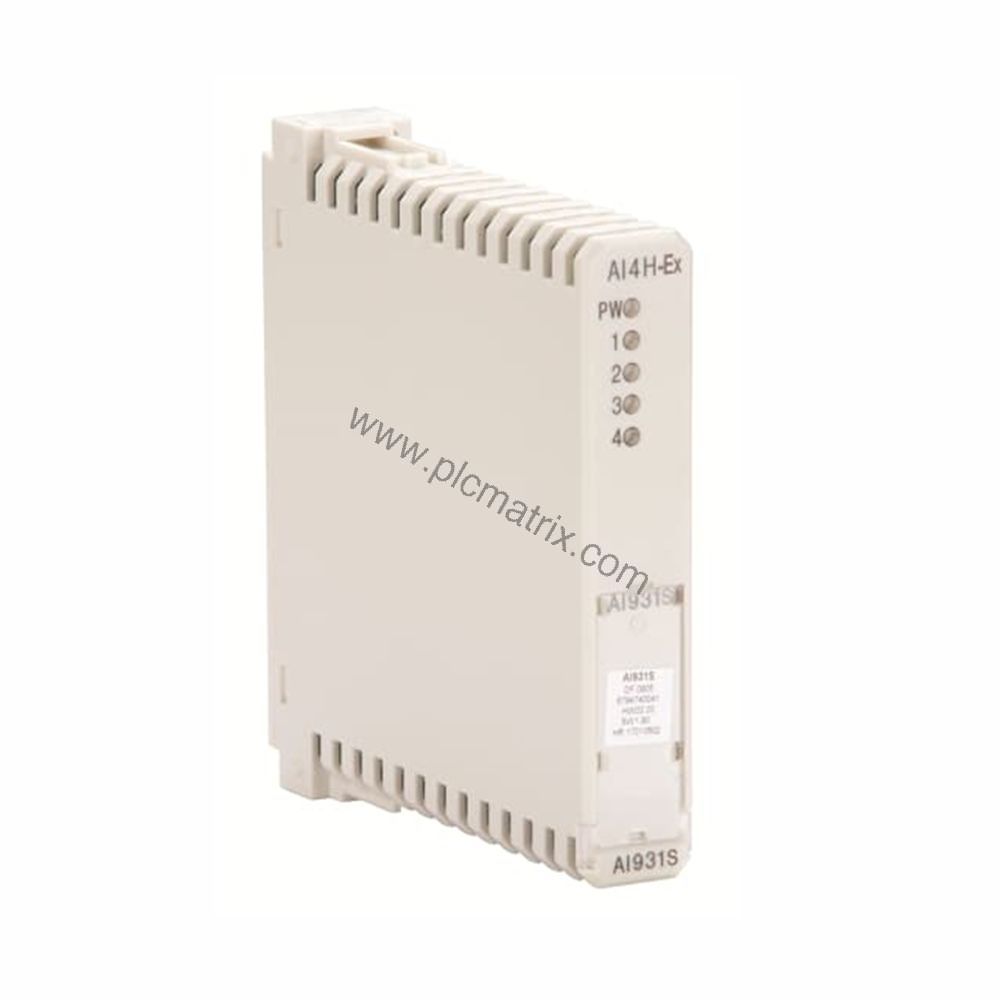

When hazardous area installations demand reliable signal acquisition, the ABB AI931S (3KDE175511L9310) delivers a cost-effective solution. This 4-channel analog input module accepts passive 0/4...20 mA signals and is ATEX certified for Zone 1 hazardous areas. By mounting the S900 I/O system directly in the field, you eliminate costly marshalling cabinets and reduce wiring expenses. The AI931S supports HART communication for additional process data, and its hot swap functionality keeps production running during module replacement.

Technical Specifications

The AI931S offers four analog input channels, each accepting 4...20 mA signals. Intrinsic safety certification allows direct connection to field devices in Zone 0, Zone 1, or Zone 2. Electrical isolation between input/bus and input/power prevents ground loops and protects the control system. The module operates in ambient temperatures from -20 °C to 60 °C and withstands corrosive atmospheres per ISA-S71.04 G3. With a weight of only 0.13 kg and compact dimensions (20 mm width), it fits densely packed cabinets without sacrificing performance.

Industry Applications

In oil and gas facilities, the AI931S connects pressure and temperature transmitters in Zone 1 areas, transmitting HART variables for predictive maintenance. Chemical plants benefit from its G3 coating, which resists corrosive gases. By using passive inputs, you avoid powering field devices from the module, lowering per-loop costs. The common return for all inputs simplifies wiring and reduces installation time. For brownfield upgrades, replacing older analog multiplexers with the AI931S cuts spare parts inventory and reduces mean time to repair.

Installation & Setup Guidance

Mount the S900 base unit in Zone 1 or non-hazardous areas. Insert the AI931S into any slot; the module is automatically addressed by the backplane. Connect 4...20 mA field devices to the screw terminals, observing polarity. The passive input design means the loop must be powered externally. Configure channel parameters via FDT/DTM software. The hot configuration in run feature allows parameter changes without stopping the process. Always verify that the intrinsic safety barrier parameters match the field device certificate.

Maintenance & Reliability

The AI931S includes extended diagnostics and auto-diagnostics that simplify maintenance. Short and break detection alerts operators to faulty wiring or sensor failures, reducing troubleshooting time. The hot swap functionality lets you replace the module without interrupting the primary voltage, minimizing downtime. Redundancy options for power and communication further enhance system availability. Periodic inspection of the G3 coating and terminal connections ensures long-term reliability in harsh environments.

Compatibility & Integration

The AI931S is part of the ABB S900 I/O system and communicates via PROFIBUS DP with any control system supporting this standard. HART frames are transmitted over the fieldbus, enabling asset management software access to device diagnostics. The module works with intrinsically safe field devices installed in Zone 0, Zone 1, or Zone 2. For non-hazardous areas, the same module can be used without safety barriers. BluePLC Industrial stocks the AI931S and compatible S900 base units, power supplies, and termination boards.

Selection Guide & Purchasing Advice

Before ordering, confirm your system variant supports Zone 1 installation. Verify that the field device output is 4...20 mA and that the loop power supply matches the intrinsic safety requirements. The AI931S does not provide SOE (sequence of events) recording. If you need redundancy, select the redundant power and communication options for the S900 backplane. Contact BluePLC Industrial for current pricing and availability. We offer fast shipping and technical support to help you integrate the AI931S into your existing automation architecture.
