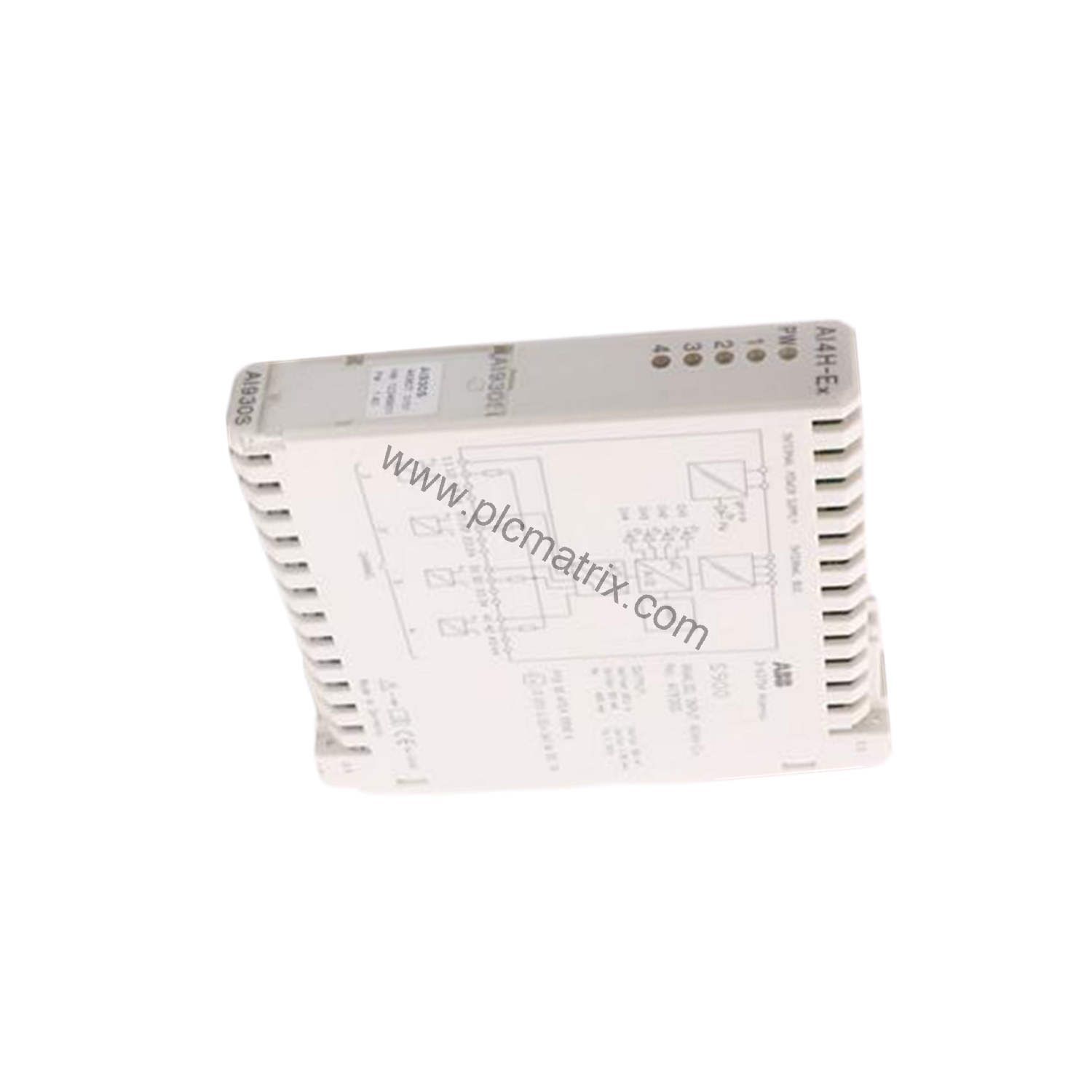

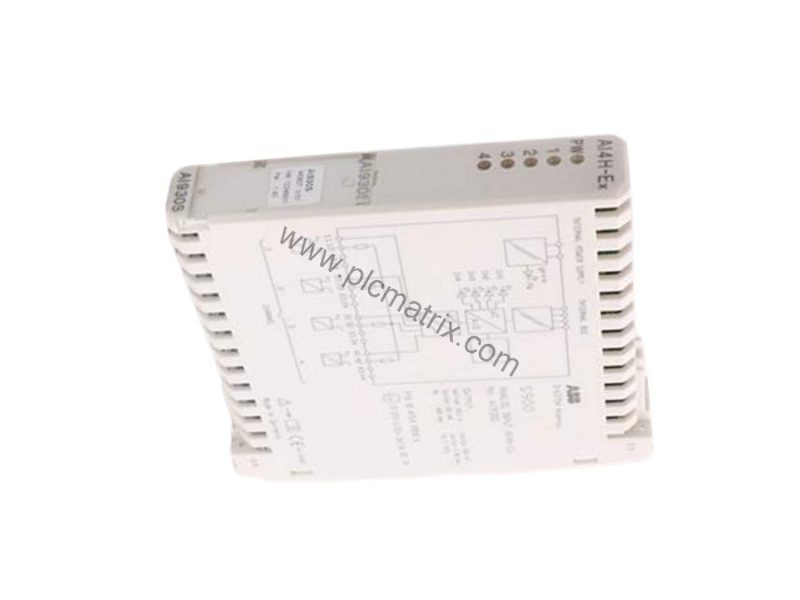

ABB AI930S HART Analog Input Module for Zone 1 Hazardous Areas

Product Overview

When hazardous area installations demand reliable analog input with HART communication, the ABB AI930S delivers a cost-effective solution. This 4-channel analog input module (AI4H-Ex) is designed for the remote S900 I/O system, enabling installation directly in Zone 1 hazardous areas. By reducing marshalling and wiring costs, the AI930S lowers total project expense while maintaining high measurement integrity for 4...20 mA loop-powered 2-wire transmitters.

Technical Specifications

The AI930S provides four analog input channels accepting 4...20 mA signals with HART protocol support. Key parameters from the product data include:

Signal type: 4...20 mA

HART capability: Yes, with transmission of HART frames via the fieldbus and cyclic HART variables

Intrinsic safety: Yes, for connecting intrinsically safe field devices in Zone 2, Zone 1, or Zone 0

Electrical isolation: Between input/bus and input/power

Common return: For all inputs

Short and break detection: Included for fault diagnostics

These specifications translate directly to cost savings: HART capability eliminates separate wiring for digital data, intrinsic safety reduces expensive explosion-proof enclosures, and integrated diagnostics minimize downtime by quickly identifying field wiring faults.

Industry Applications

The AI930S excels in process industries such as oil and gas, chemical, and pharmaceutical plants where hazardous areas are common. For example, in a chemical reactor monitoring application, the module connects to 4...20 mA pressure and temperature transmitters located in Zone 1. The HART protocol allows remote configuration and diagnostics of each transmitter without additional communication infrastructure, reducing both installation and maintenance costs. In a refinery, the AI930S can be installed directly in Zone 1, eliminating the need for long cable runs to a central control room and cutting wiring material and labor expenses.

Installation & Setup Guidance

The AI930S mounts on a standard S900 I/O backplane in Zone 1 hazardous areas. Ensure the system variant selected matches the intended hazardous location classification. The module supports hot swap functionality, allowing replacement during operation without interrupting the primary voltage to the power supply units. For optimal cost efficiency, plan the I/O layout to minimize the number of power supply modules and fieldbus segments, leveraging the common return feature to reduce wiring.

Maintenance & Reliability

Routine maintenance of the AI930S focuses on verifying proper operation of the short and break detection and checking the integrity of field wiring connections. The module features extended diagnostics and auto-diagnostics, which simplify troubleshooting and reduce mean time to repair. The G3 coating per ISA-S71.04 protects against corrosive atmospheres, extending service life in harsh environments and lowering replacement costs over the system lifetime. The operating temperature range of -20 °C to 60 °C and humidity tolerance up to 93% at 40 °C ensure reliable performance in demanding climatic conditions.

Compatibility & Integration

The AI930S communicates with the control system via PROFIBUS DP, a widely adopted fieldbus standard. It integrates seamlessly with the S900 I/O system, which supports redundancy for power and communication. The module works with FDT/DTM for excellent configuration and diagnostics. When planning a system, verify that the control system supports PROFIBUS DP and that the S900 I/O backplane matches the required number of modules. BluePLC Industrial can assist with compatibility checks and provide the necessary accessories for a complete solution.

Selection Guide & Purchasing Advice

Before purchasing the ABB AI930S (article number 3KDE175511L9300), confirm that your application requires 4...20 mA analog input with HART in a Zone 1 hazardous area. The module does not support SOE (Sequence of Events) and is not redundant by itself. For redundant configurations, use the S900 system's power and communication redundancy features. BluePLC Industrial offers the AI930S with competitive pricing and fast shipping. Contact our team to verify current lifecycle status and availability before ordering.
